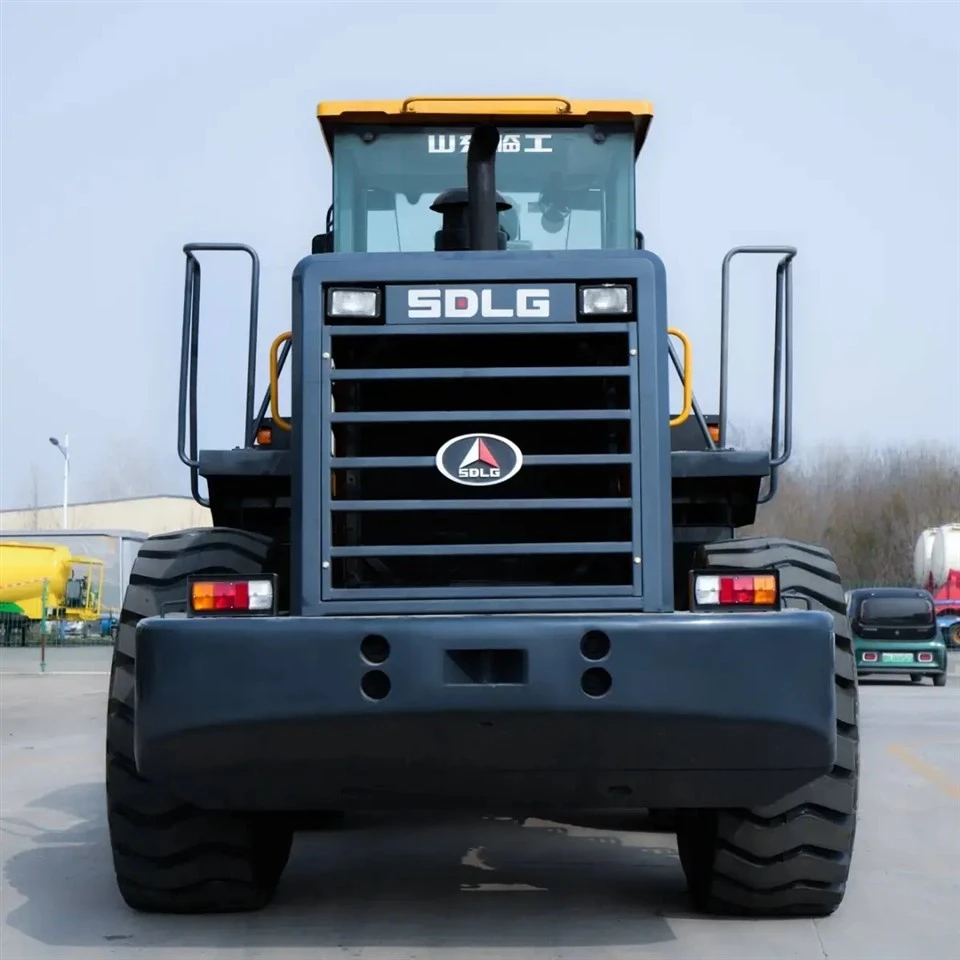

SDLG LG953 Wheel Loader

The SDLG LG953 Wheel Loader is equipped with the WD10G220E21, a 9.726-liter inline six-cylinder diesel engine. Its 162 kW rated output is enough for regular 5-ton loading work, while the peak torque comes in the 1,400–1,600 rpm range.

This low-to-mid speed torque is useful when the loader is pushing into a pile or climbing out with a loaded bucket. The engine does not need to run at maximum speed all the time to get useful pulling force.

The transmission uses a planetary power-shift design with two forward gears and one reverse gear. It is a relatively simple setup compared with newer electronically controlled loaders, which can be an advantage for customers who prefer equipment that local mechanics can work on without complicated diagnostic equipment.

The machine has a 3 m³ bucket and a rated load of 5,000 kg. The maximum breakout force is listed at 165 kN, while maximum traction force reaches 148 kN based on the supplied vehicle configuration.

The maximum dumping height is 3,050 mm, with a dumping distance of 1,100 mm at the stated working condition. This makes the loader suitable for feeding material into trucks, stockpiles and hoppers.

The bucket dumping angle is 45°, which allows the material to leave the bucket without requiring excessive movement from the machine.

The articulated steering system allows the front and rear sections of the machine to move around the center joint. The steering angle reaches 35° to both the left and right sides.

The minimum turning radius listed for this machine is 6,700 mm at the outside of the rear wheel. For material yards and construction sites, this matters because the loader often has to make short turns between the stockpile and the loading point.

For braking, the machine uses an air-over-oil four-wheel disc brake system for service braking and a caliper disc brake for parking.

The SDLG LG953 Wheel Loader uses an open-circuit, dual-pump confluence hydraulic system with mechanical control. The hydraulic oil capacity of this particular machine is 220L. The system operates the boom and bucket during loading, lifting and dumping cycles.

For customers buying used or stock equipment, it is worth checking the hydraulic cylinders, hoses, pump condition and bucket linkage before shipment. These parts usually receive a lot of movement during daily loader operation.

The SDLG 953 is suitable for a range of material-handling jobs, including:

Sand and gravel yards

Quarry operations

Construction sites

Coal handling

Aggregate loading

Road construction

Material stockpiles

General earthmoving

The official SDLG description also lists sand plants, ports, construction sites and mines among the typical application areas for the LG953.

One of the main points of the SDLG LG953 Wheel Loader is that it is not an overly complicated machine. The 5-ton rated loading capacity, 3 m³ bucket and 162 kW diesel engine put it in a useful range for general loading work.

The 260L fuel tank is also useful for operators running several working hours per day. The articulated steering and 35° steering angle make the machine easier to position around loading areas.

For overseas buyers, another point worth considering is the engine and transmission structure. The WD10G220E21 and planetary power-shift transmission are established configurations, and the simpler mechanical layout can make routine maintenance easier in markets where specialized service equipment is not always available.

Besides wheel loaders, we also supply other construction and transportation equipment.

Our product range includes excavators, wheel loaders, dump trucks, mining trucks, tractor trucks, fuel tank trucks, water tank trucks and various semi-trailers.

For customers working in construction, quarrying, mining or material transportation, we can also discuss different equipment combinations according to the actual job, such as loaders matched with dump trucks for continuous loading and hauling.

For stock machinery, checking the actual machine is more useful than simply looking at a specification sheet.

Before delivery, we can check the engine starting condition, exhaust, oil leakage, transmission operation, steering system, braking system and hydraulic functions.

The bucket, lifting arms, pins and cylinders are also checked because these parts are directly involved in daily loading work.

We can provide photos and videos of the actual machine, including the engine running, bucket movement and overall condition, so buyers can confirm the equipment before shipment.

The machine measures approximately 7.9 meters long, 3 meters wide and 3.4 meters high according to the supplied configuration.

Because of its size and weight, shipping needs to be arranged according to the destination port and available vessel. Ro-Ro and bulk shipping can be considered depending on the route and freight cost.

Before loading, the machine is cleaned and checked. Vulnerable parts are protected, and the loader is properly secured during transportation to reduce movement and possible damage at sea.
