3 Axle Stake Side Semi Trailer

3 Axle Stake Side Semi Trailer
Details:
Loading different kinds of cargo every day can be messy, especially when sizes don’t match. The 3 Axle Stake Side Semi Trailer makes that part easier. You can haul pallets in the morning and longer materials in the afternoon without changing equipment. The side panels can be opened or removed, so loading from the side is quick when forklifts are busy or space is tight.
Send Inquiry
Description
Send Inquiry

Product Details



Loading different kinds of cargo every day can be messy, especially when sizes don't match. The 3 Axle Stake Side Semi Trailer makes that part easier. You can haul pallets in the morning and longer materials in the afternoon without changing equipment. The side panels can be opened or removed, so loading from the side is quick when forklifts are busy or space is tight.


In daily use, the frame feels solid and doesn't flex much even with uneven loads. The steel stakes hold cargo in place, and tying things down is straightforward. One thing to note, the structure is a bit heavier, but that also gives more stability on the road. Overall, the Semi Trailer fits transport work where cargo types change often and you need flexibility without overcomplicating things. The 3 Axle Stake Side Semi Trailer is especially suitable for logistics companies, construction deliveries, and farm use.



Product Parameters



Parameter

Specification

Model

3 Axle Stake Side Semi Trailer

Overall Length

12,000 - 13,600 mm (Customizable)

Overall Width

2,500 mm / 2,550 mm

Rated Load Capacity

40T - 60T

Axle Configuration

3 x 13T / 16T Heavy-Duty Axles

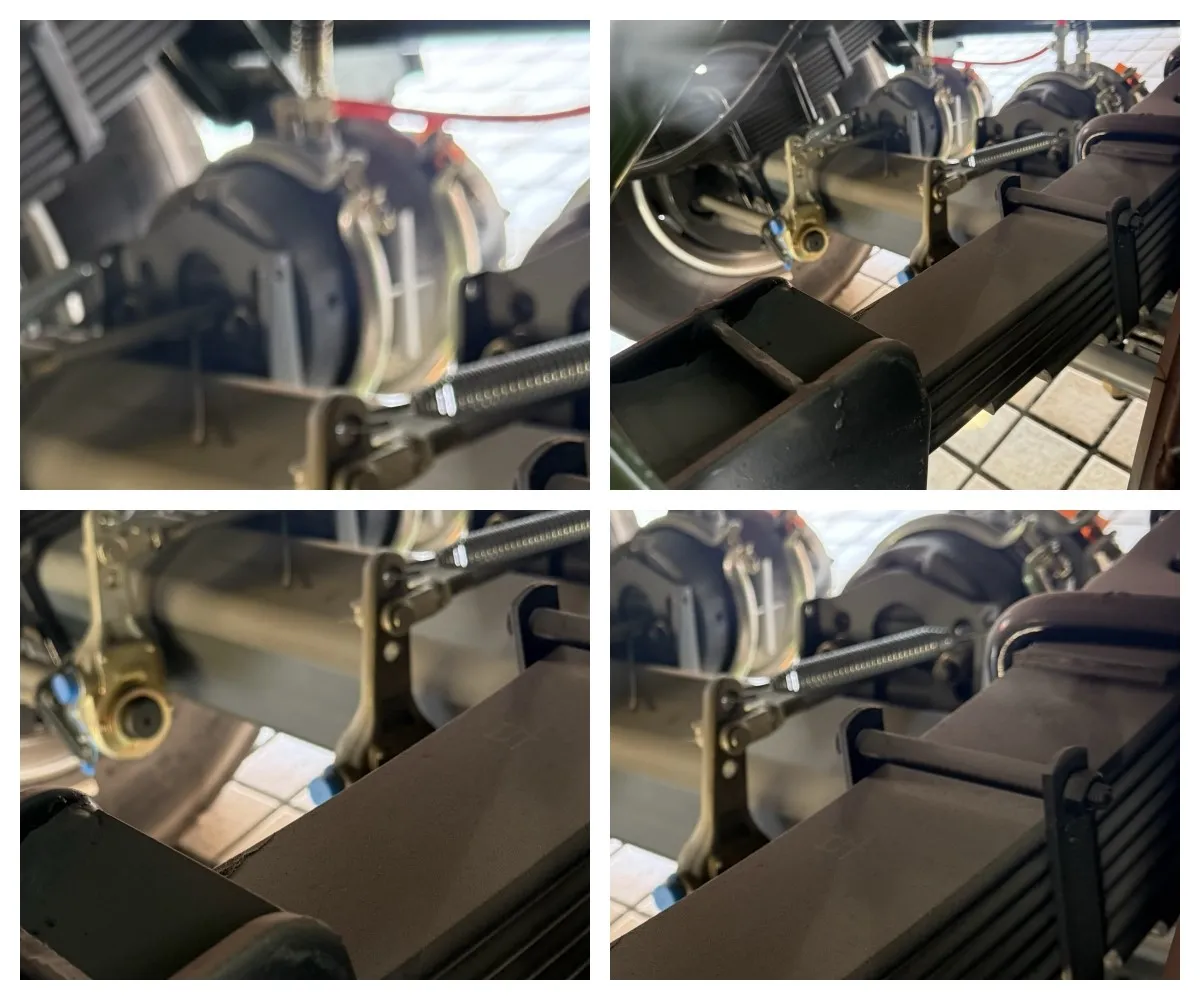

Suspension

Heavy-Duty Mechanical Leaf Spring Suspension

Tire Specification

12R22.5 / 315/80R22.5 (12 units)

Frame Material

High-Tensile Q345B Steel

Side Structure

Removable Steel Stakes and Panels

Kingpin

2" or 3.5"

Brake System

Dual-Line Air Brake with ABS

Floor Material

Anti-Slip Steel Plate



Product Features



The side structure is practical in real use. Panels can be taken off or folded down when needed, so loading large or irregular cargo doesn't become a problem.
The frame uses thick steel, and you can feel it when driving on rough roads. It doesn't shake too much, even when the load isn't perfectly balanced.
Three axles help spread the weight better. Tires don't wear unevenly as fast, and the trailer feels more stable when turning or braking.
There are enough fixing points along the sides, so ropes or chains can be attached easily. This helps keep cargo from shifting during long trips.
Braking is straightforward and reliable. Lights and reflective parts are simple but useful, especially when driving at night or in bad weather.

product-1200-1000



Our main products



We don't only produce this model. There are also tractor trucks, different semi-trailers, dump trucks, fuel tank trucks, and water tank trucks.
For semi-trailers, options include low flatbed types, container flatbeds, skeleton trailers, side wall trailers, van trailers, dump trailers, cement tank trailers, fuel tank trailers, and tank trailers made from stainless steel or aluminum, plus car carriers.
If standard models don't match your job, adjustments can be made. For example, changing the body length, adjusting axle layout, or modifying the structure for local road conditions.



product-1200-1000



After Sales Service



Before delivery, each vehicle goes through basic checks. The engine is started and observed, the gearbox is tested during shifting, and the axle sealing is checked.
Lights, brakes, and wiring are also tested to make sure they work normally. A short road test is usually done to see if anything feels off.
If something comes up during use, support is available, and parts can be arranged when needed.



Packing & Delivery



Shipping depends on the order size and destination. Common options include bulk shipping, RORO, or containers.
The trailer is usually coated with wax to reduce rust during transport. It is then fixed with steel wires to keep it stable. In some cases, extra supports are added to avoid movement on long trips.
We try to choose a method that keeps cost reasonable while still protecting the equipment.



product-1200-880



FAQ



Q: What kind of company are you?

A: We are a vehicle manufacturer based in Liangshan, Shandong, with export experience to many countries.

Q: Why choose your products?

A: We keep regular stock and also handle custom builds. The structure is practical and suited for daily work.

Q: How do I place an order?

A: Confirm details with the sales team, then proceed with the order agreement and payment.

Q: How is quality checked?

A: Basic inspections and testing are done before shipment, and third-party inspection is also acceptable.

Q: Can I visit the factory?

A: Yes, pick-up from Qingdao Airport can be arranged.

Q: Delivery time?

A: Around 7 days for stock units, about 30 days for custom orders.

Q: Production capacity?

A: Around 30,000 units per year.

Q: Do you accept custom orders?

A: Yes, even a single unit can be customized based on requirements.
