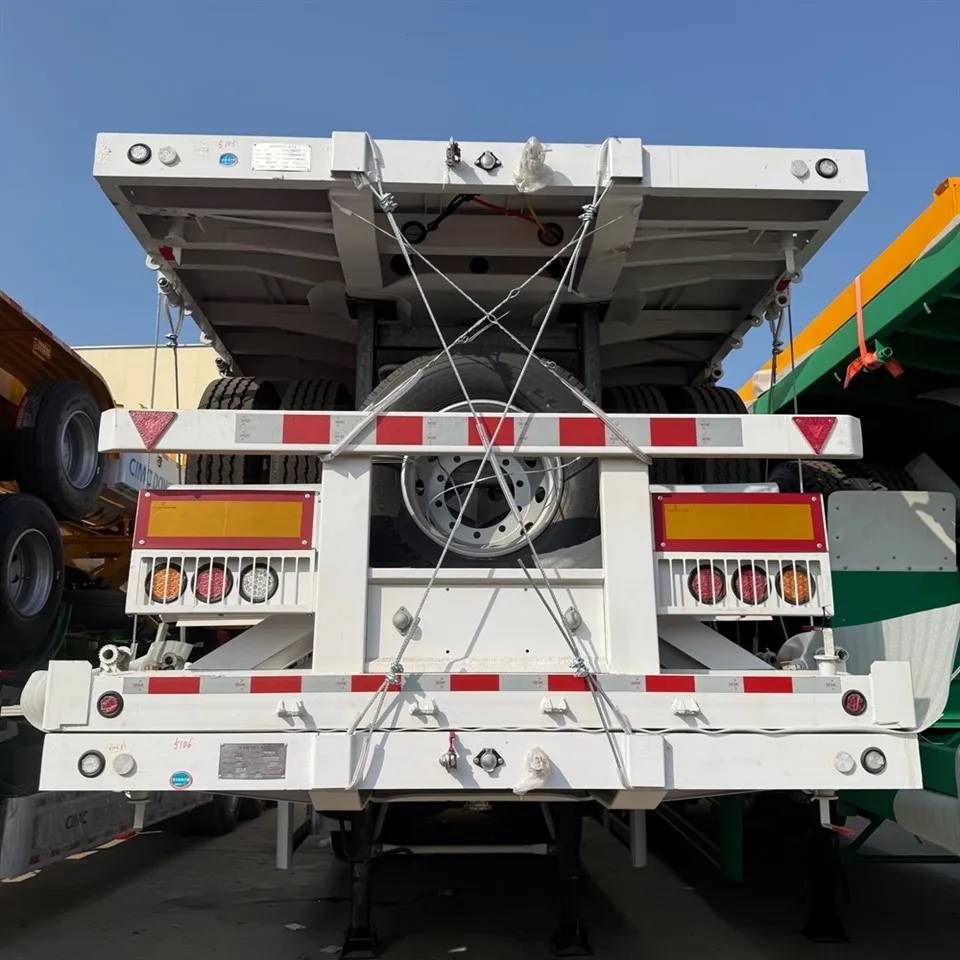

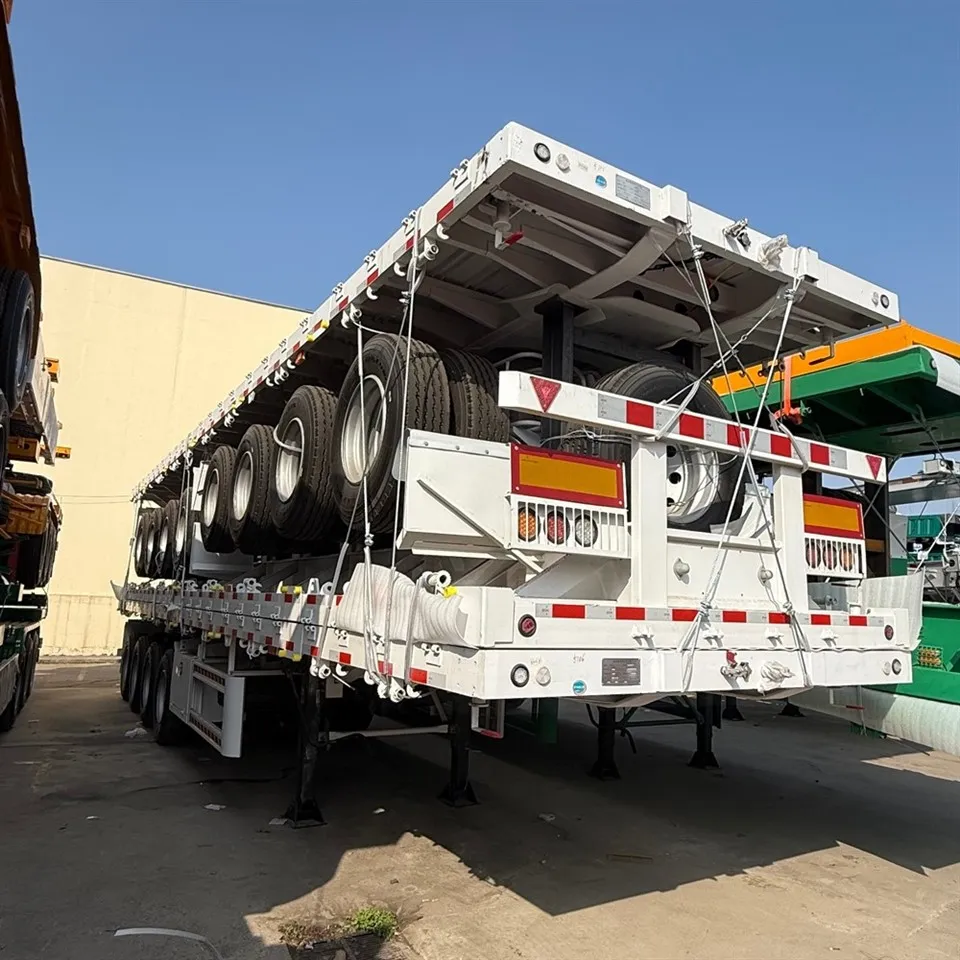

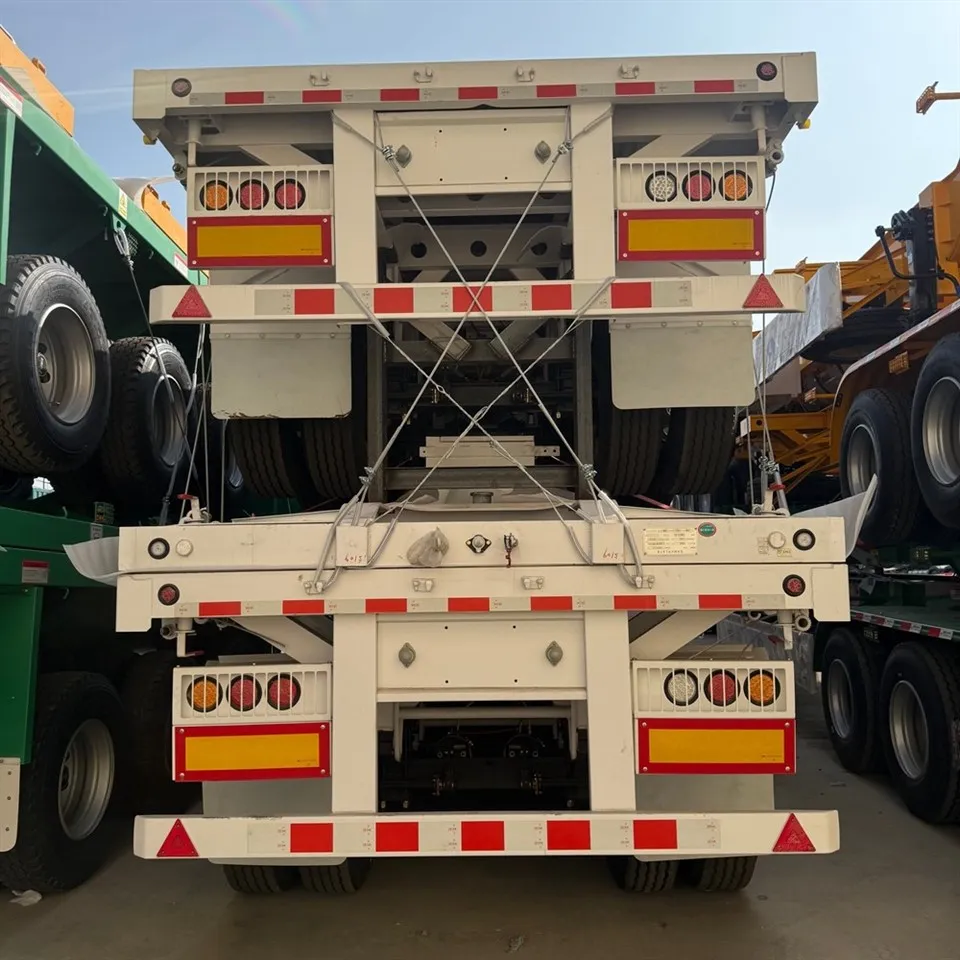

4 Axle Flatbed Container Trailer

4 Axle Flatbed Container Trailer
Details:
When the load gets heavier and a 3-axle trailer starts to feel pushed, people usually move to this type. This 4 Axle Flatbed Container Trailer is often used for container transport where weight is higher and stability matters more, especially on long routes or uneven roads.
Send Inquiry
Description
Send Inquiry

Product Details



When the load gets heavier and a 3-axle trailer starts to feel pushed, people usually move to this type. This 4 Axle Flatbed Container Trailer is often used for container transport where weight is higher and stability matters more, especially on long routes or uneven roads.
In real work, the extra axle helps a lot. The load is spread across four points, so the trailer doesn't feel stressed in one area. The flat deck makes it easy to place containers or large items without complicated setup. Twist locks are already installed, so containers can be fixed quickly. The frame is thick and holds up well after repeated heavy use. This Trailer is also used when transporting equipment that doesn't fit inside a container.
One thing to consider is size and weight. It needs more room when turning, and fuel use may be slightly higher compared to smaller trailers.



Product Parameters



Parameter

Specification

Model

4 Axle Flatbed Container Trailer

Overall Length

13,000 mm / 13,600 mm (Customizable)

Overall Width

2,500 mm / 2,550 mm

Deck Height

1,500 - 1,600 mm

Rated Load Capacity

60T - 80T

Axle Configuration

4 x 13T / 16T Heavy-Duty Axles

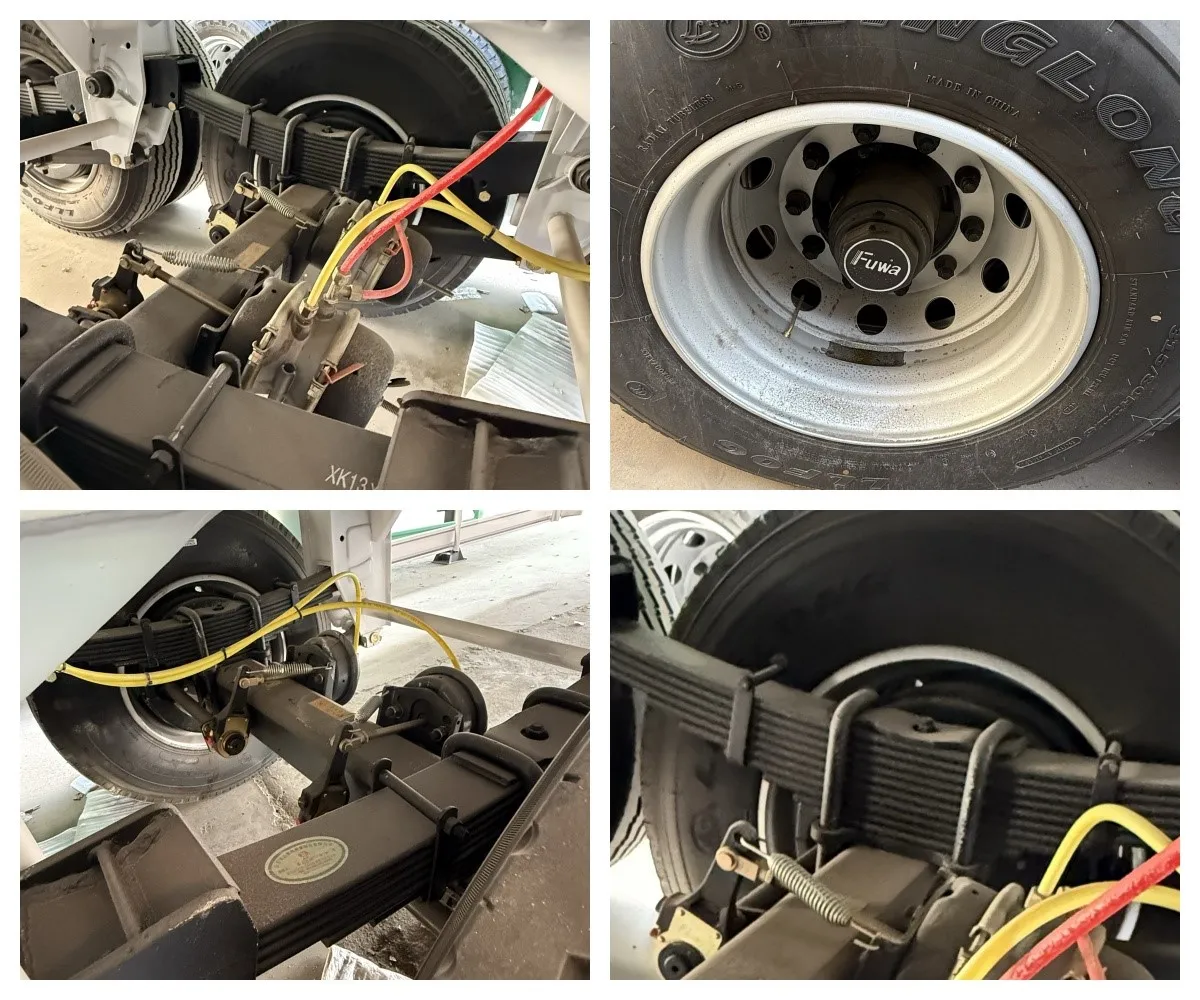

Suspension

Heavy-Duty Mechanical Leaf Spring Suspension

Tire Specification

12R22.5 / 315/80R22.5 (16 units)

Frame Material

High-Tensile Q345B Steel

Container Compatibility

20ft / 40ft / 45ft ISO Containers

Twist Locks

4-12 Units (Standard/Optional)

Kingpin

2" or 3.5"

Brake System

Dual-Line Air Brake with ABS

Side Rail

Removable Steel Side Panels (Optional)



Product Features



Load capacity
With four axles, the trailer can handle heavier cargo compared to smaller models. The weight is spread out, which helps reduce pressure on the frame.


Frame build
The main beam uses solid steel with reinforced sections. After long use under heavy loads, it still keeps its shape without obvious bending.


Container use
Twist locks allow standard containers to be secured quickly. The flat deck can also carry other types of cargo if needed.


Driving stability
The extra axle improves balance on the road. When driving on rough surfaces, the trailer feels more controlled and less shaky.


Daily use
Because of its structure, the 4 Axle Flatbed Container Trailer works well for both container transport and general cargo without needing major changes.

product-1200-1000



Our main products



We also supply other transport equipment such as tractor trucks, dump trucks, fuel tank trucks, and water tank trucks.
Our trailer range includes flatbed trailers, skeleton trailers, side wall trailers, van trailers, cement tank trailers, and car carriers. Custom adjustments can be made based on actual use.



product-1200-1000



After Sales Service



Before delivery, each vehicle is checked carefully. Engine condition, gearbox operation, and axle sealing are inspected step by step.
The frame is reviewed, and lights and wipers are tested to make sure everything works normally. If any issue comes up later, support is available.



Packing & Delivery



Shipping is arranged based on order size and destination. Common methods include bulk vessel, RORO, or container transport.
Before shipment, the trailer is treated to help prevent rust. It is fixed securely and covered to reduce damage during transport.



product-1200-880



FAQ



Q: What is your company?

A: We are a vehicle manufacturer located in Liangshan, Shandong, with experience in exporting transport equipment.

Q: What are your advantages?

A: We usually have stock available, which helps shorten delivery time.

Q: How to place an order?

A: Contact sales to confirm details, then proceed with the order.

Q: Quality guarantee?

A: Certifications are available, and third-party inspection can be arranged if needed.

Q: Factory visit?

A: Pick-up from Qingdao Airport can be arranged.

Q: Delivery time?

A: Around 7 days for stock units and about 30 days for custom orders.

Q: Production capacity?

A: About 30,000 units per year.

Q: Custom orders?

A: Yes, custom orders are supported, starting from 1 unit.
