Product Details

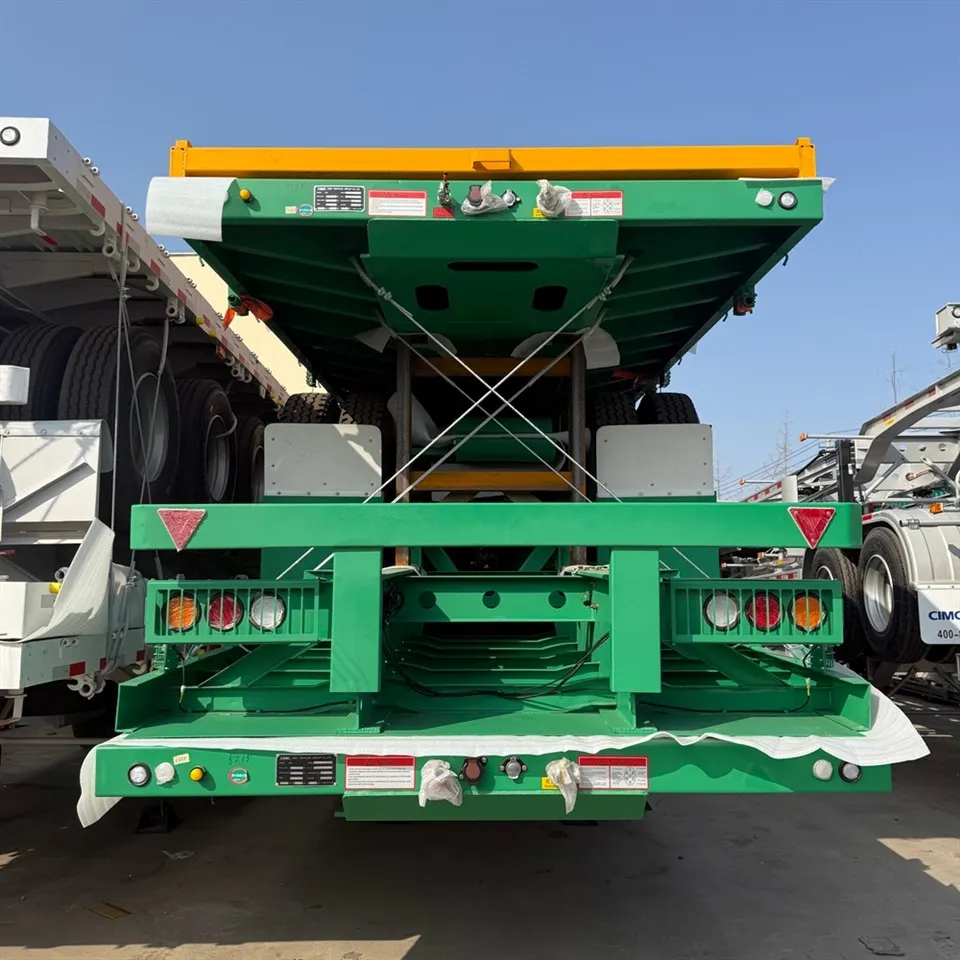

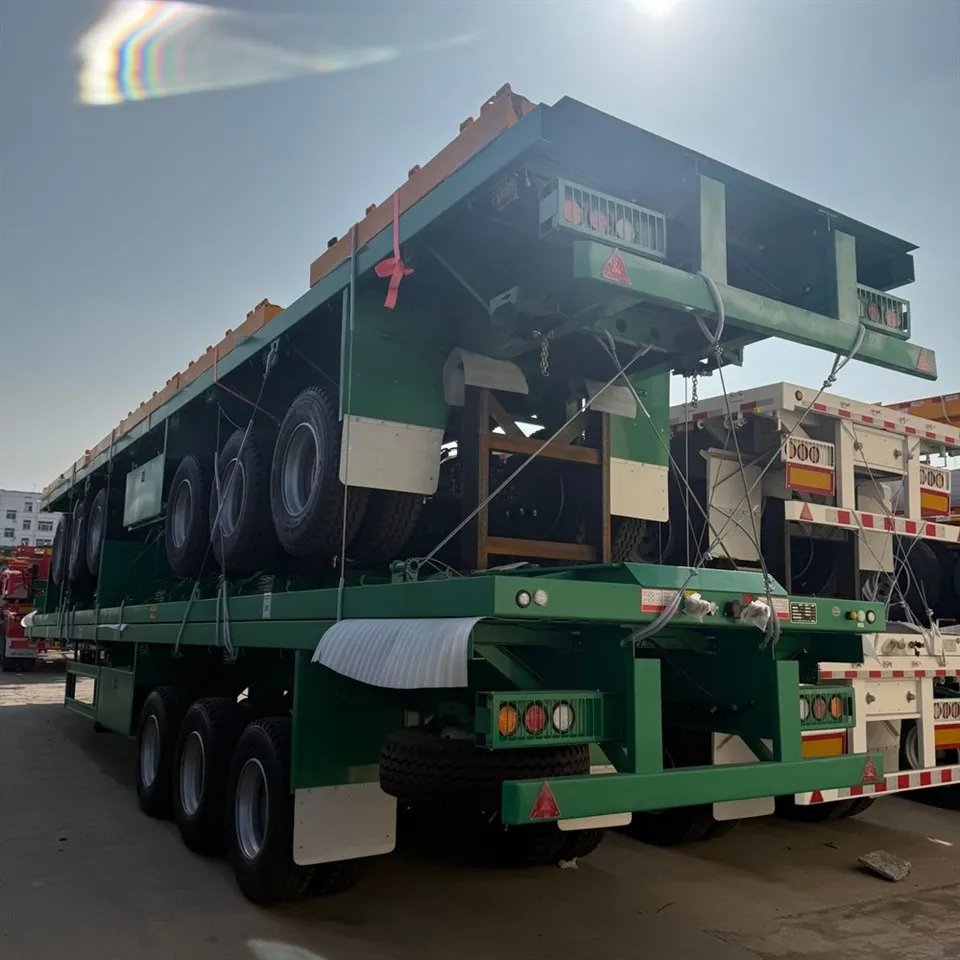

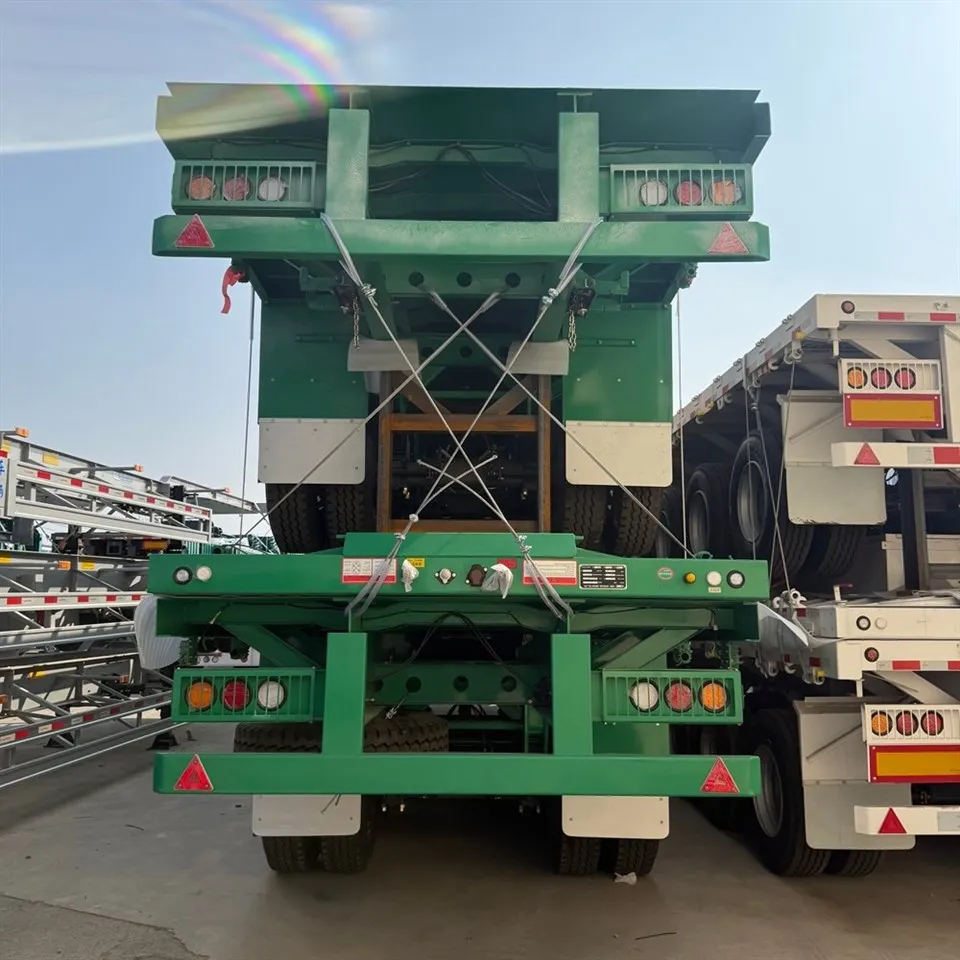

When you're moving containers or steel materials, the main concern is usually space and stability. A closed trailer isn't flexible enough, and that's where this 3 Axle Flatbed Trailer becomes useful. It's simple in structure but works for many different types of cargo.
In daily use, the flat deck makes loading easier. Containers, pallets, or long materials can be placed without worrying too much about size limits. The frame is made from thick steel, and after running long distances, it still holds its shape well. With three axles, the trailer feels balanced even when the load is close to 60 tons. This Trailer is often used for highway transport as well as short-distance site delivery.
One small downside is that without side protection, cargo needs to be secured properly. If not tied down well, it can shift during transport.
Product Parameters
|
Parameter |
Specification |
|
Model |
3 Axle Flatbed Trailer |
|
Overall Length |
13,000 mm (Customizable) |
|
Overall Width |
2,550 mm / 3,000 mm |
|
Deck Height |
1,500 - 1,800 mm |
|
Rated Load Capacity |
40T - 60T |
|
Number of Axles |
3 Axles (Heavy-Duty) |
|
Axle Brand |
FUWA / BPW (Optional) |
|
Suspension |
Heavy-Duty Mechanical Leaf Spring |
|
Tire Size |
12R22.5 / 315/70R22.5 (12 units) |
|
Main Beam |
Q345B High-Tensile Steel |
|
Gooseneck |
Integrated Gooseneck Design |
|
Kingpin |
2" or 3.5" (Heavy Forging) |
|
Braking System |
Air Brake with ABS |
|
Side Wall |
Removable / Extendable (Optional) |
Product Features
Frame strength
The main beam uses solid steel. Under heavy cargo, it doesn't easily bend, and it keeps stable over time.
Weight distribution
Three axles help spread the load, so pressure is not focused on one area. This makes driving more stable, especially on uneven roads.
Flexible loading
The open deck supports containers of different sizes. Twist locks are included, and side rails can be added or removed depending on the job.
Towing and braking
The connection part is strong and fits standard tractor heads. Braking response is steady, and ABS is included for better control.
Practical use
Because of its simple structure, the 3 Axle Flatbed Trailer is easy to maintain and works for many transport tasks without much adjustment.
Our main products
Besides this trailer, we also produce tractor trucks, dump trucks, fuel tankers, and water trucks.
In terms of trailers, we supply flatbeds, skeleton trailers, container carriers, side wall trailers, van types, cement tank trailers, and car carriers. If needed, we can adjust the design to match different working conditions.
After Sales Service
Before delivery, each unit is checked step by step. The engine, gearbox, and axle condition are all inspected.
The frame is reviewed for safety, and lights and wipers are tested to make sure they work normally. If any issue comes up later, support is available.
Packing & Delivery
Shipping is arranged based on the order. Bulk vessel, RORO, or container shipping are commonly used.
Before transport, the trailer is treated to reduce rust risk. It is fixed securely, and protective covers are used to avoid damage during shipping.
FAQ
Q: What is your company?
A: We are a vehicle manufacturer based in Liangshan, Shandong, with experience in exporting different types of transport equipment.
Q: What are your advantages?
A: We usually keep stock available, which helps reduce waiting time.
Q: How to place an order?
A: Contact sales to confirm specifications, then proceed with the order.
Q: Quality guarantee?
A: Certifications are available, and third-party inspection can be arranged if required.
Q: Factory visit?
A: Pick-up from Qingdao Airport can be arranged.
Q: Delivery time?
A: Around 7 days for stock, about 30 days for custom orders.
Q: Production capacity?
A: About 30,000 units per year.
Q: Custom orders?
A: Yes, custom orders are supported, starting from 1 unit.
