Product Details

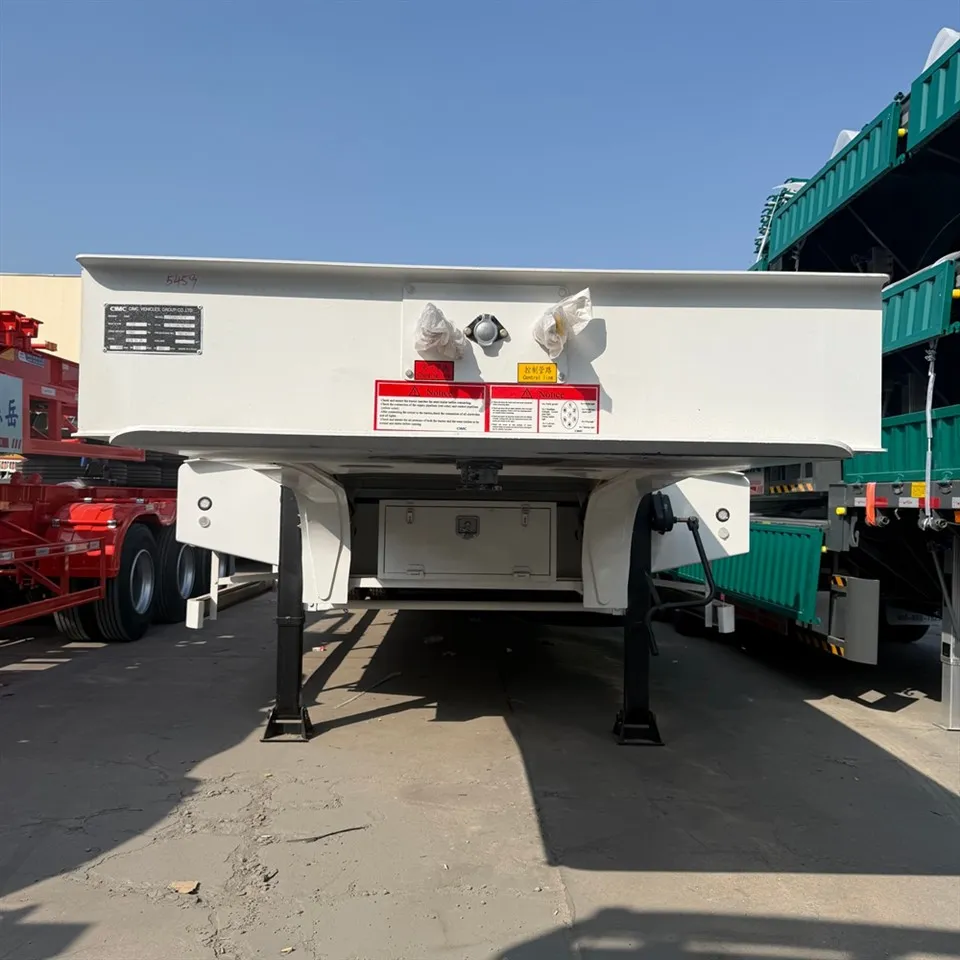

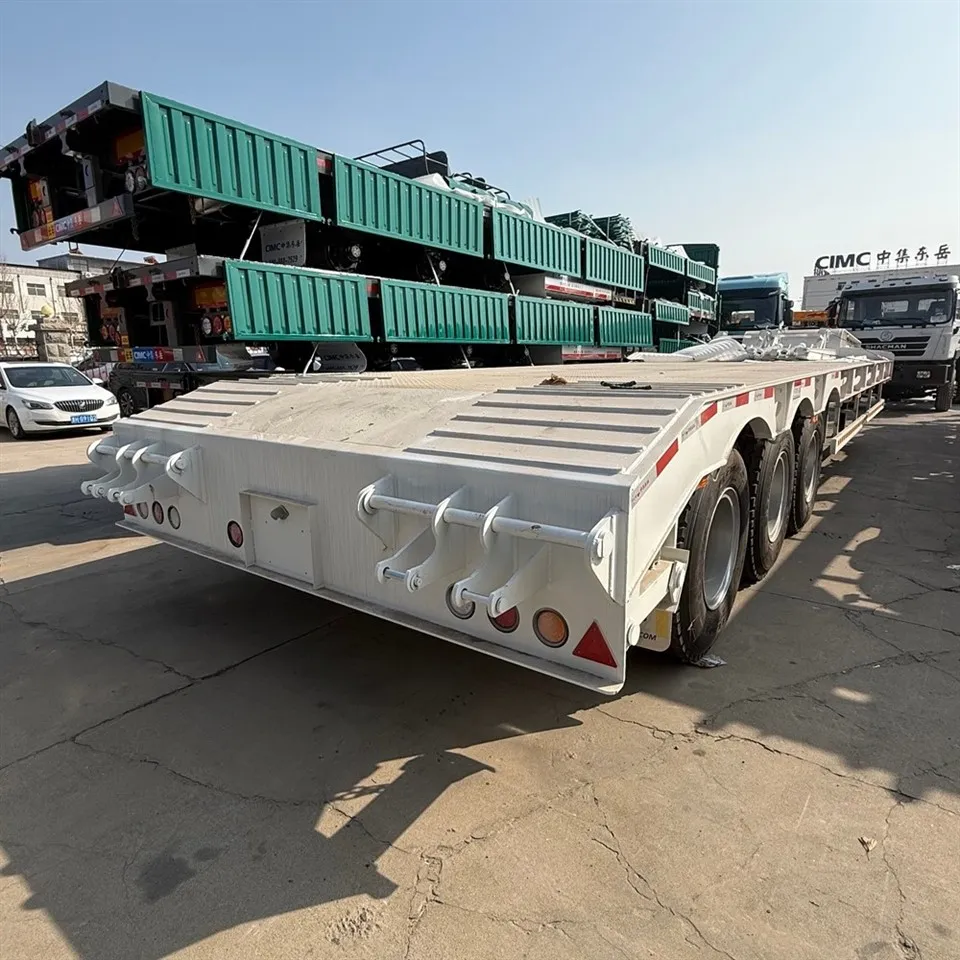

Moving big machines isn't just about weight - height and turning space can slow everything down. On narrow site roads or tight yards, a normal trailer can be hard to handle. This Low Bed Gooseneck Semi Trailer is made for those situations, especially when you need better control while carrying heavy equipment.In daily use, the gooseneck helps a lot when turning. It feels more stable compared to a standard flat trailer, especially when entering job sites with limited space. The deck sits low, so taller machines don't look risky during transport. The frame uses thick Q345 steel, and you can tell it's built to take weight without flexing too much.There's enough space on the deck for excavators or similar equipment, and side panels can be removed if needed. That makes this Low Bed Gooseneck Semi Trailer useful not only for machinery but also for general cargo when required.One small thing - because of the gooseneck structure, hooking and unhooking takes a bit more attention if you're new to it, but after a few uses it becomes routine.
Product Parameters
|
Parameter |
Specification |
|
Overall Length |
13,000 mm (customizable) |
|
Overall Width |
3,000 mm (customizable) |
|
Loading Deck Height |
900 mm |
|
Rated Load Capacity |
60-80 tons |
|
Number of Axles |
3 axles (tri-axle) |
|
Axle Brand |
BPW/FUWA heavy-duty axles |
|
Suspension |
Heavy-duty mechanical suspension |
|
Tire Specification |
12R22.5 radial tires (12 units) |
|
Frame Material |
High-tensile Q345 steel |
|
Gooseneck Type |
Standard fixed gooseneck |
|
Kingpin Size |
2" or 3.5" (optional) |
|
Brake System |
Dual-line air brake with ABS |
|
Ramp Type |
Optional hydraulic/mechanical rear ramps |
Product Features
Gooseneck Structure
The front design helps distribute weight more evenly. When turning in tight areas, it feels easier to control compared to regular flatbed trailers.
Low Deck Height
The lower platform makes it possible to carry taller machines without pushing legal height limits too much. This can save time on permits in some regions.
Steel Frame Build
Made from Q345 steel with reinforced weld points. Under heavy load, the frame stays firm and doesn't show obvious bending after long use.

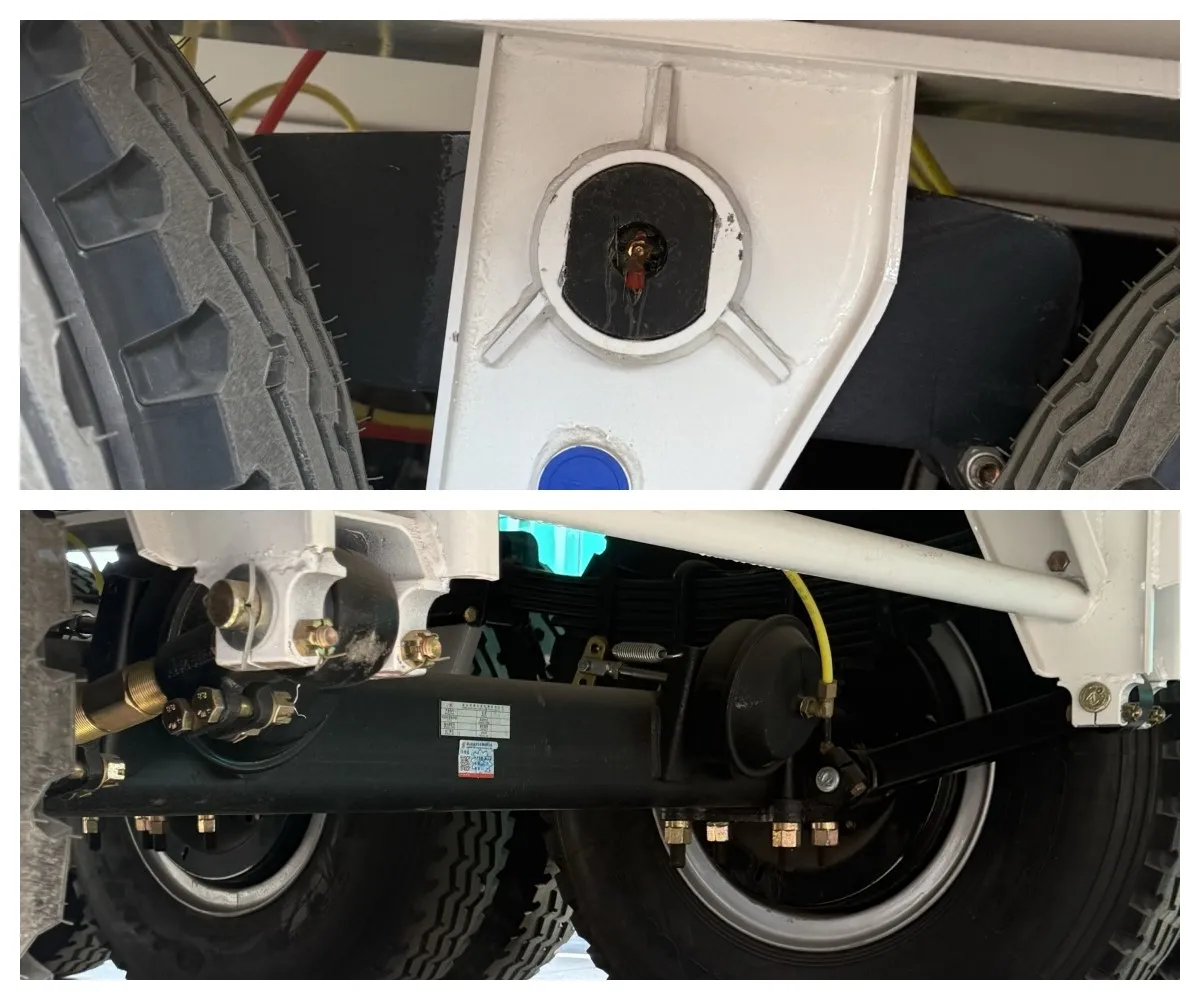

Axles & Suspension
Equipped with heavy-duty axles and mechanical suspension. When driving on uneven ground, it reduces shaking and helps keep the load steady.
Flexible Setup
Rear ramps, side panels, and dimensions can be adjusted based on the job. This Low Bed Gooseneck Semi Trailer can be set up for both equipment and bulk cargo without too much modification.
Our main products
We don't only supply this type of trailer. Our lineup also includes tractor trucks, different semi-trailers, dump trucks, fuel tankers, and water trucks.For semi-trailers, options cover flatbed types, container chassis, skeleton trailers, side wall trailers, van trailers, cement tank trailers, and car carriers. If your work has special requirements, we can adjust the design based on your usage.
After Sales Service
We don't only supply this type of trailer. Our lineup also includes tractor trucks, different semi-trailers, dump trucks, fuel tankers, and water trucks.For semi-trailers, options cover flatbed types, container chassis, skeleton trailers, side wall trailers, van trailers, cement tank trailers, and car carriers. If your work has special requirements, we can adjust the design based on your usage.
Packing & Delivery
Shipping is arranged depending on order size and destination. Common methods include bulk vessels, RORO, and containers.
Before loading, the trailer is treated with wax for basic rust protection. It is then secured properly to avoid movement during transport.
FAQ
Q: What is your company?
A: We are a vehicle manufacturer based in Liangshan, Shandong, with export experience in different markets.
Q: What are your advantages?
A: We usually keep a large number of units in stock, which helps with faster delivery.
Q: How to place an order?
A: Contact our sales team, confirm specifications, then proceed with the order agreement.
Q: Quality guarantee?
A: Certifications are available, and third-party inspection can be arranged if required.
Q: Factory visit?
A: Pick-up service from Qingdao Airport is available.
Q: Delivery time?
A: Around 7 days for stock units, about 30 days for customized ones.
Q: Production capacity?
A: Annual output is about 30,000 units.
Q: Custom orders?
A: Yes, custom orders are supported, starting from 1 unit.
